Product Overview

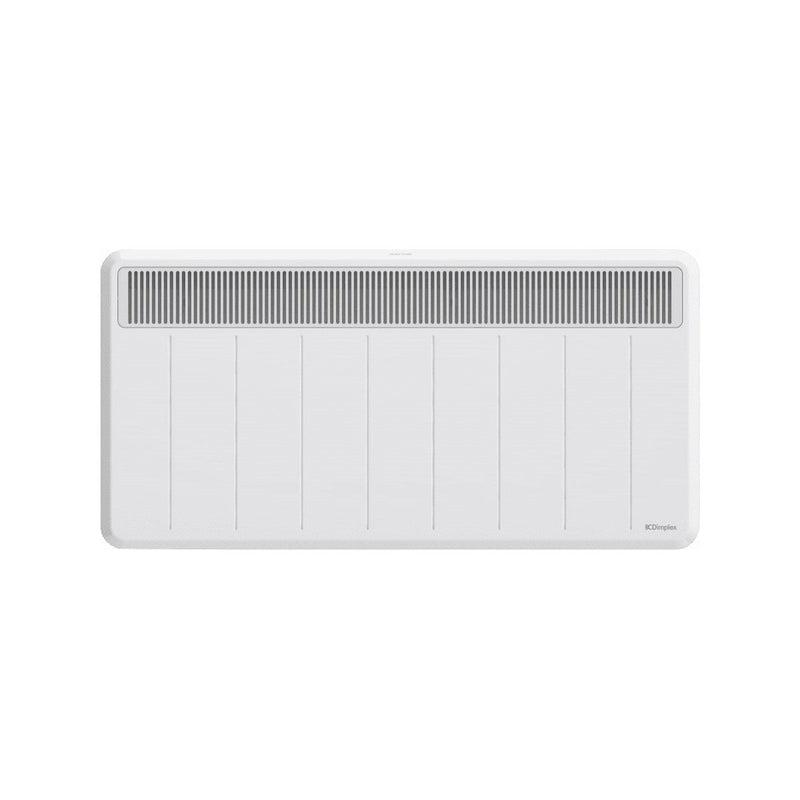

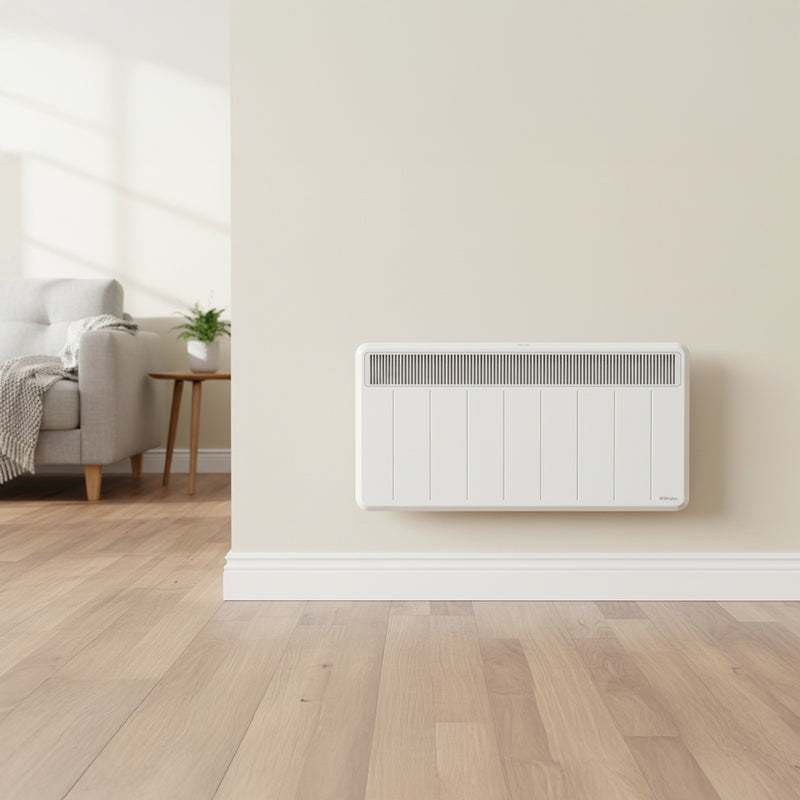

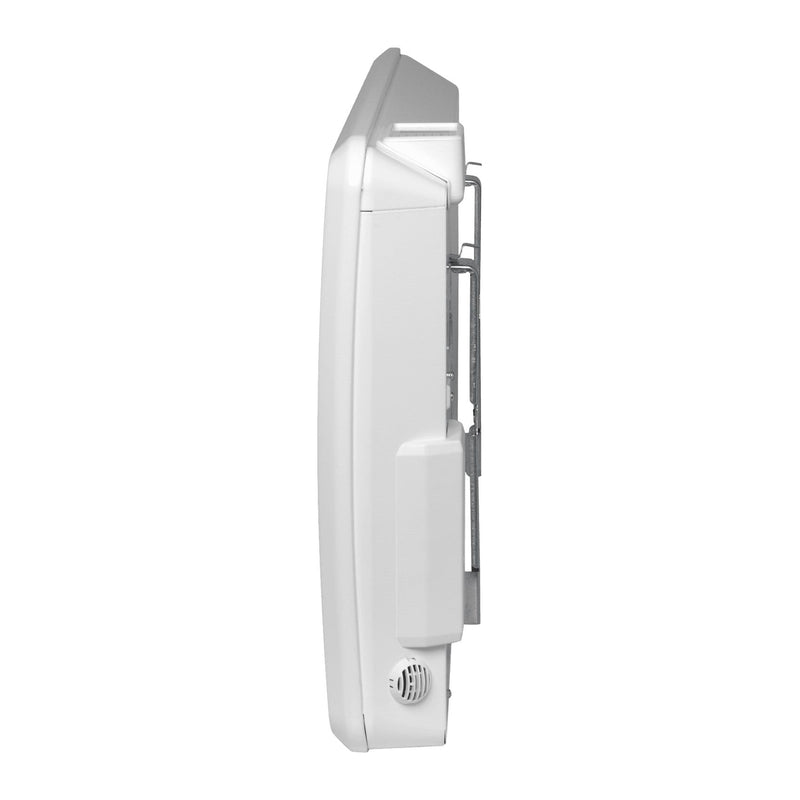

Dimplex EcoElectric 3000W Panel Heater with 7 Day Timer - PLXC300E

This 3kW Dimplex panel heater boasts an array of eco and user-friendly functions that allow for a personalised heating schedule to suit individual needs. The compact design and crisp white finish make it suitable for a range commercial and domestic applications.

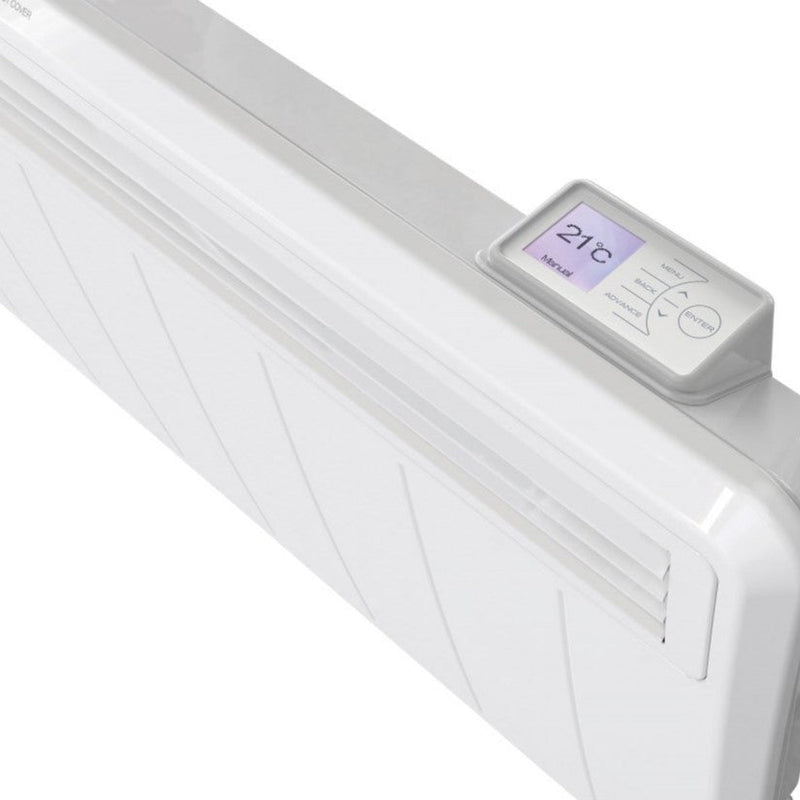

The electronic thermostat takes a precise room temperature reading (to within 0.2°C) and will then heat the room according to the users’ preferred settings. Being IP24 rated, this heater can be installed in bathroom Zone 3, as it is protected from water sprays. The heater is Lot 20 compliant and comes with an array of eco-friendly functions to help save on energy costs. Additionally, the brand has added some general energy saving tips within the home in the instruction manual provided. The heater also features an open window detection function, whereby, a drastic drop in the ambient temperature by 3 or more degrees will cease operation.

There are various modes and functions available to suit the needs of the end user, including Holiday mode, a 7-day programmable timer and a constant heating mode. Additionally, there is an advanced boost setting which can provide temporary heat in one-, two-, or 3-hour increments.

Operating Modes

Manual Mode – Heats the room to a comfortable temperature of 21°C

Eco mode – In Eco mode the heater has a target temperature of 18°C, which ensures a comfortable but energy efficient room temperature.

Frost protection Mode – This mode maintains a room temperature of 7°C, to provide protection against frost.

Downloads

Download PLXE Instruction Manual

Download PLXE Data Sheet

Specification
