Product Overview

Dimplex EcoElectric 1500W Panel Heater with 7 Day Timer- PLX150E

Similar to DVNDM15 part of the Devola Eco Range

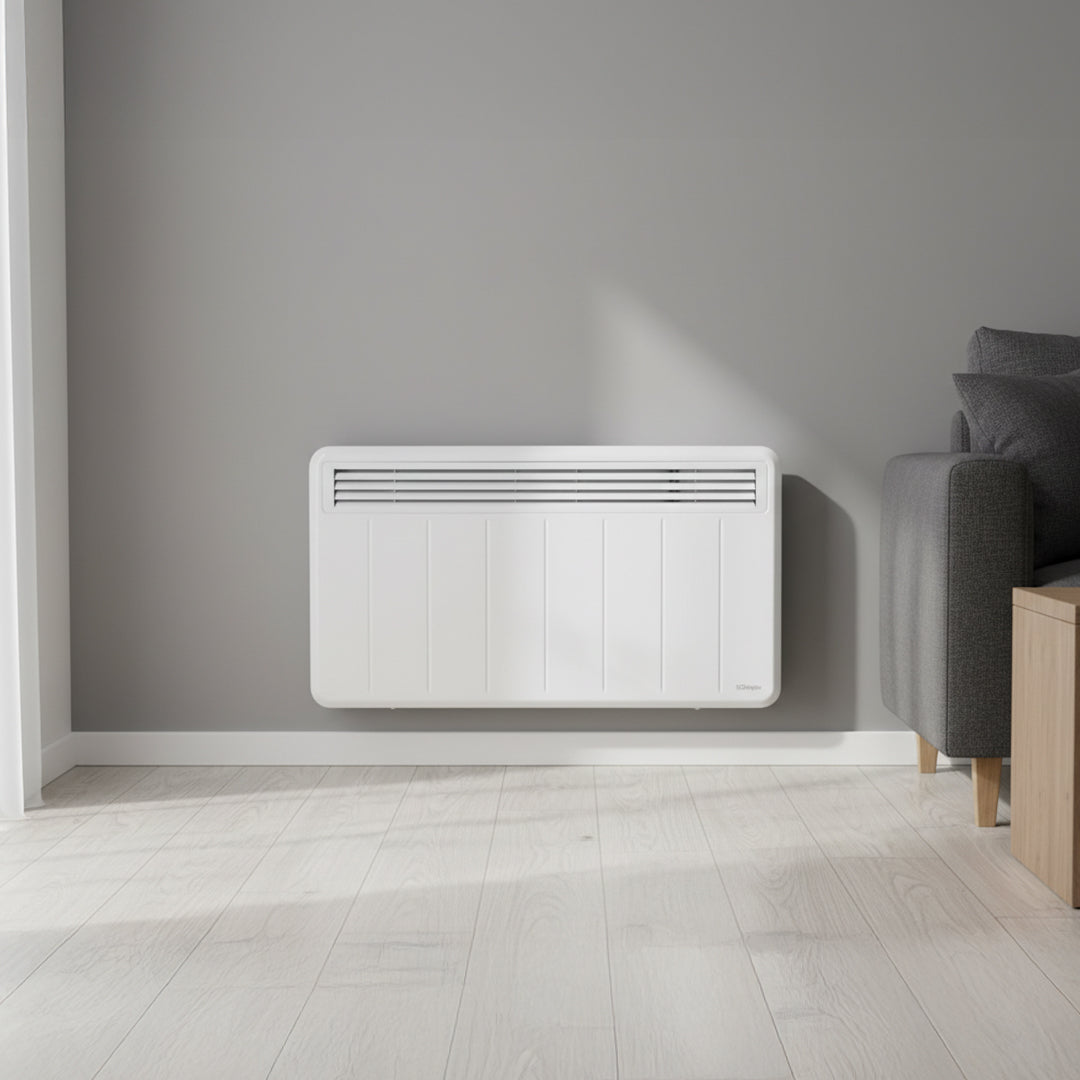

This 1.5kW Dimplex panel heater boasts an array of eco and user-friendly functions that allow for a personalised heating schedule to suit individual needs. The compact design and crisp white finish make it suitable for a range commercial and domestic applications.

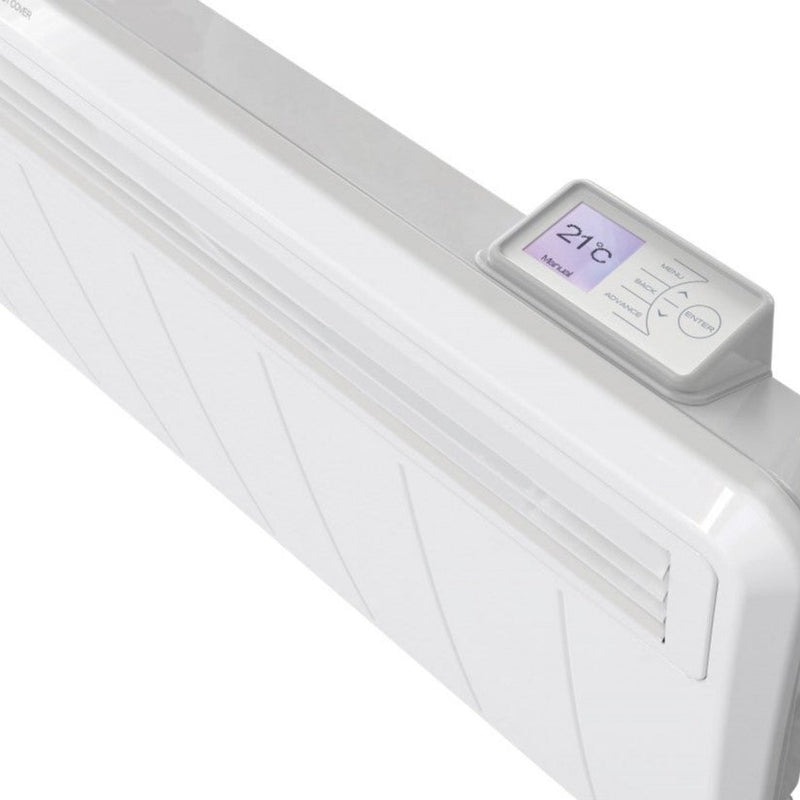

The electronic thermostat takes a precise room temperature reading (to within 0.2°C) and will then heat the room according to the users’ preferred settings. Being IP24 rated, this heater can be installed in bathroom Zone 3, as it is protected from water sprays. The heater is Lot 20 compliant and comes with an array of eco-friendly functions to help save on energy costs. Additionally, the brand has added some general energy saving tips within the home in the instruction manual provided. The heater also features an open window detection function, whereby, a drastic drop in the ambient temperature by 3 or more degrees will cease operation.

There are various modes and functions available to suit the needs of the end user, including Holiday mode, a 7-day programmable timer and a constant heating mode. Additionally, there is an advanced boost setting which can provide temporary heat in one-, two-, or 3-hour increments.

Operating Modes

Manual Mode – Heats the room to a comfortable temperature of 21°C

Eco mode – In Eco mode the heater has a target temperature of 18°C, which ensures a comfortable but energy efficient room temperature.

Frost protection Mode – This mode maintains a room temperature of 7°C, to provide protection against frost.

Downloads

Download PLXE Instruction Manual

Download PLXE Data Sheet

Specification

Applicable Area	Conservatory, Living Room, Office
Cable Length	1.3 mm
Collection Name	EcoElectric
Cost Pence Per Hour	47.0
Digital Controls	No
Domestic or Commercial	Domestic
Finish Or Colour	White
For Rooms Upto m2	15 m²
IP Rating	IP24
Minimum Voltage	230 V
Mounting	Wall
MPN	PLX150E
Old GTIN	5011139090737
Plug Supplied	Installed Product ( No Plug )
power consumption	1500 W
Remote Control	No
Thermostat	Yes
Timer	Yes
Type Of Heater	Panel Heater
Voltage	240 V
Depth	108 mm
Height	430 mm
Weight	6.1 kg
Width	690 mm
