Product Overview

Designed to work effectively in kitchens, the 150mm (6″) axial flow kitchen fans are quiet, efficient and can be wall, ceiling or window mounted.

Incorporating the latest ­technology, the 150 series has been designed for simple ­installation and has a powerful extract rate of 230m³/hr 64 litres per second for the XF version and 220m³/hr 62 litres per second on the WF150.

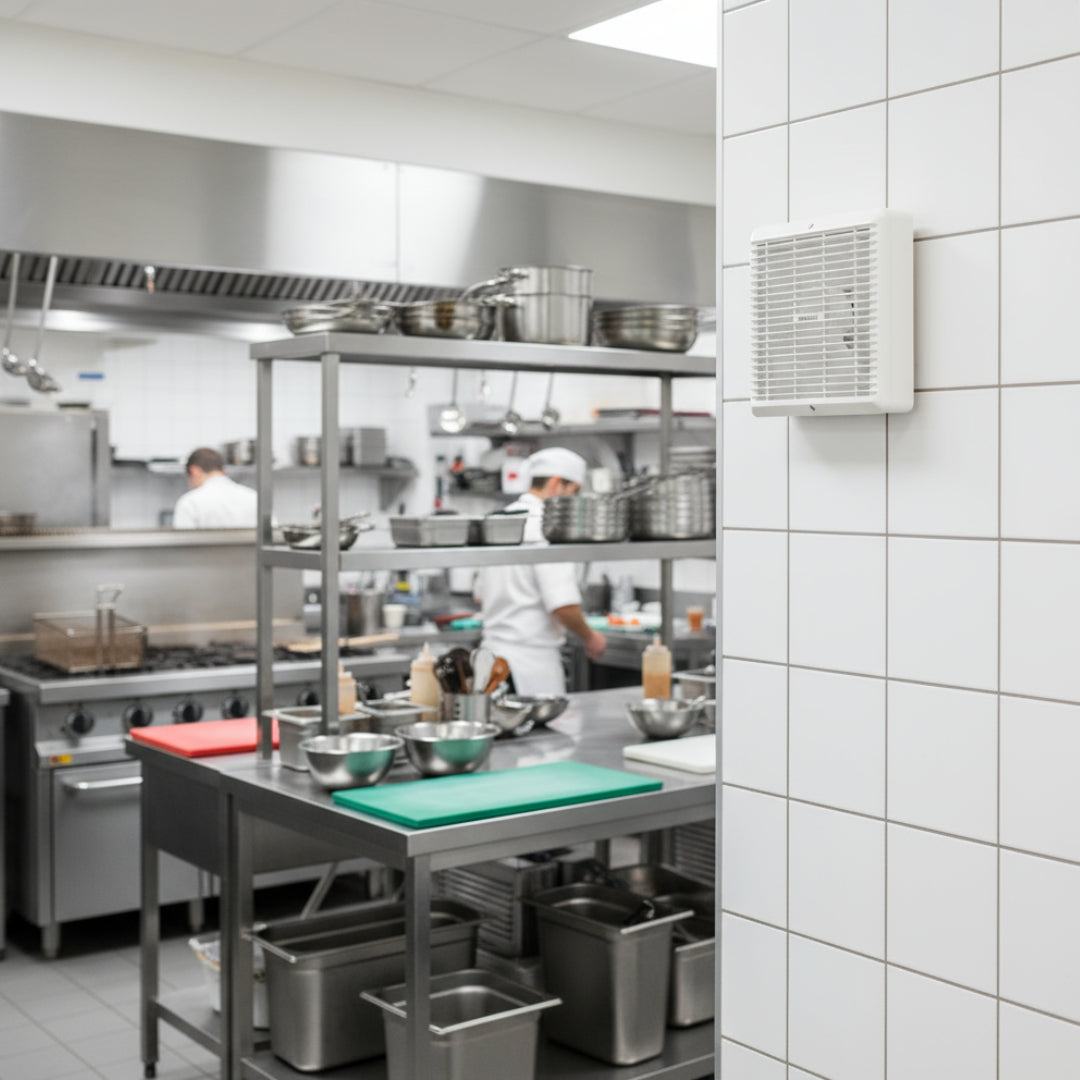

The range is ideally suited to use in domestic and commercial applications including kitchens, utility rooms, restaurants, hotels, offices and shops. The WF150 range is suitable for window mounting.

The units are all manufactured using high impact ABS ­thermoplastics for strength and durability, aesthetics and easy cleaning.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

Downloads

Download WF Product Datasheet

Specification

Airflow	230 m3/h
Applicable Area	Kitchen
Extraction Rate Litres Second	64 L/s
Extractor Type	Axial
Finish Or Colour	White
Humidistat	No
IP Rating	IP44
Minimum Voltage	230 V
Mounting	Window
MPN	WF150P
Noise Level Maximum	40 dB
power consumption	20 W
Timer	No
Voltage	240 V
Depth	118 mm
Height	203 mm
Width	203 mm
