Product Overview

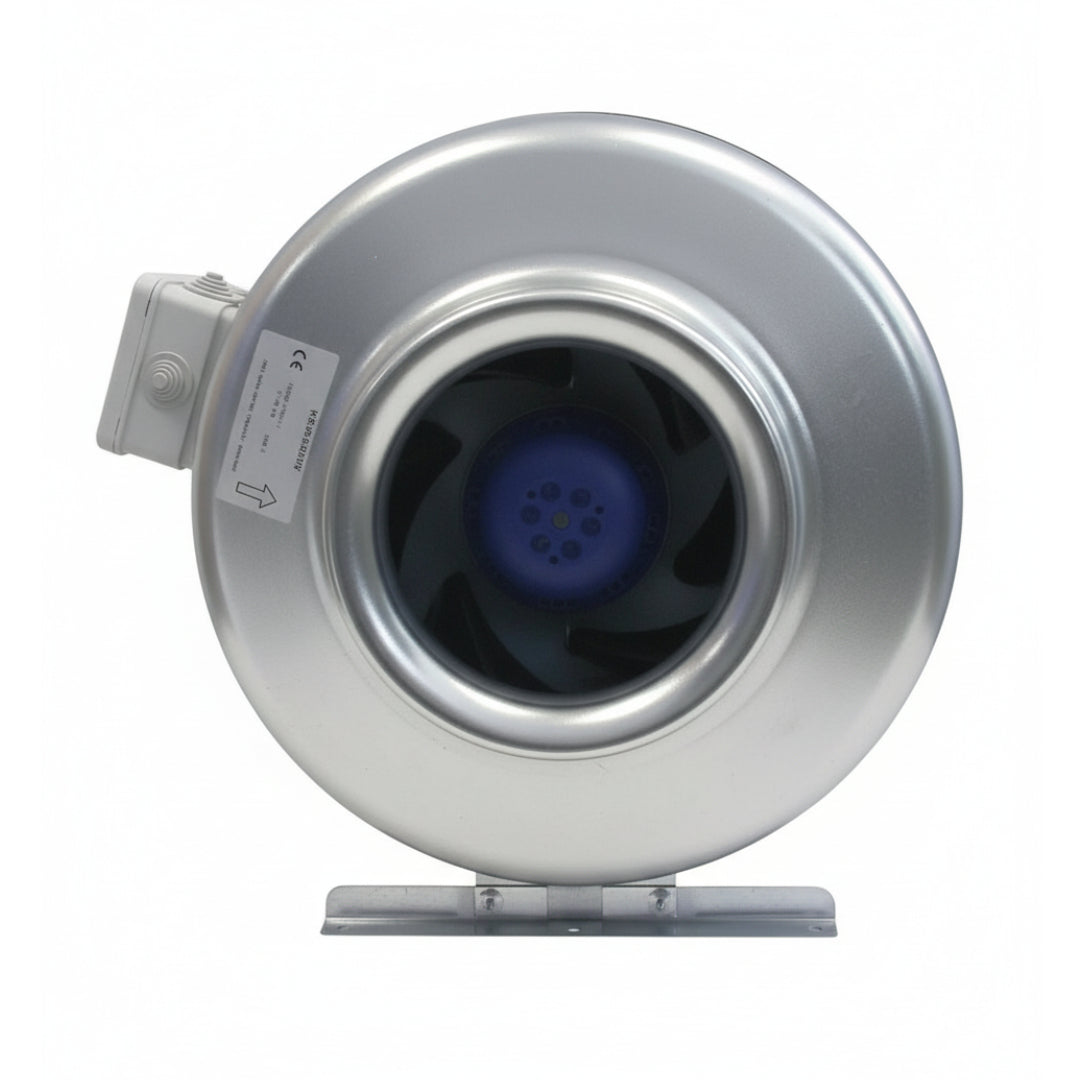

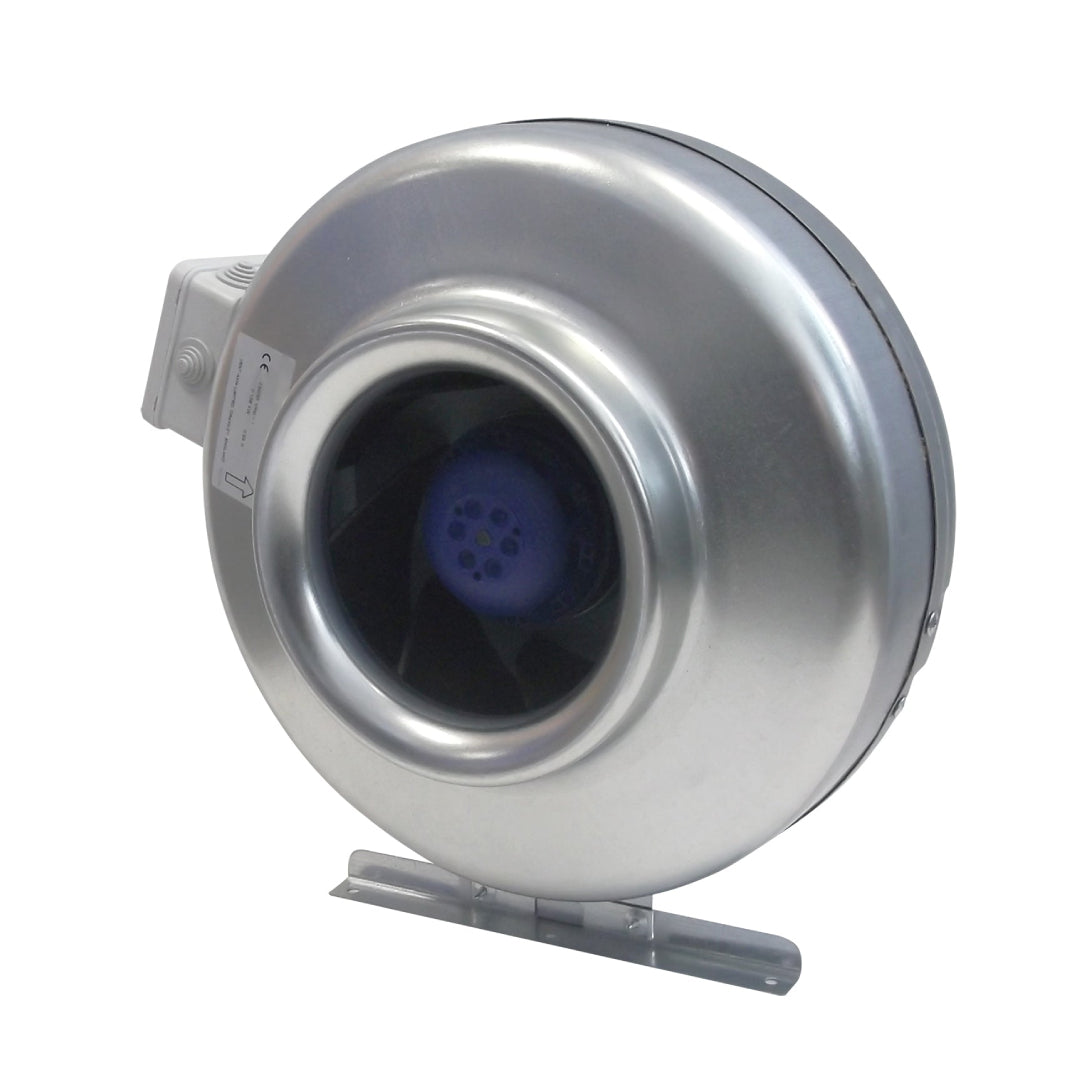

The Manrose 150mm Metal Inline Centrifugal Extractor Fan (MET150) is a robust and efficient solution for both commercial and industrial ventilation needs. Designed to deliver high airflow performance, this extractor fan is perfect for environments requiring reliable and powerful air extraction. Its metal construction ensures durability and longevity, making it suitable for continuous use in demanding settings. The MET150 is equipped with a backward curved centrifugal impeller, which enhances its ability to handle large volumes of air even against the resistance of long duct lengths.

This extractor fan operates at a fan speed of 2409 RPM, providing an impressive extraction rate of 759m³/h (211 litres per second). Despite its powerful performance, the MET150 maintains a relatively low noise level of 51 dB(A), ensuring a quieter operation compared to other industrial fans. The fan is designed for easy installation with 30mm long inlet and discharge spigots, facilitating straightforward ductwork connections. Additionally, it is compatible with electronic speed control, allowing users to adjust the fan speed according to their specific ventilation requirements.

The MET150 also features an IP44 rating, indicating its resistance to dust and water splashes, making it suitable for various environments, including kitchens, offices, and warehouses. Its compact design, with dimensions of 387mm in height, 344mm in width, and 217mm in depth, allows for flexible mounting options, either horizontally or vertically. With its combination of power, efficiency, and durability, the Manrose MET150 is an excellent choice for maintaining optimal air quality in commercial and industrial spaces.

Downloads

Download met-range-spec-sheet

Specification
