Product Overview

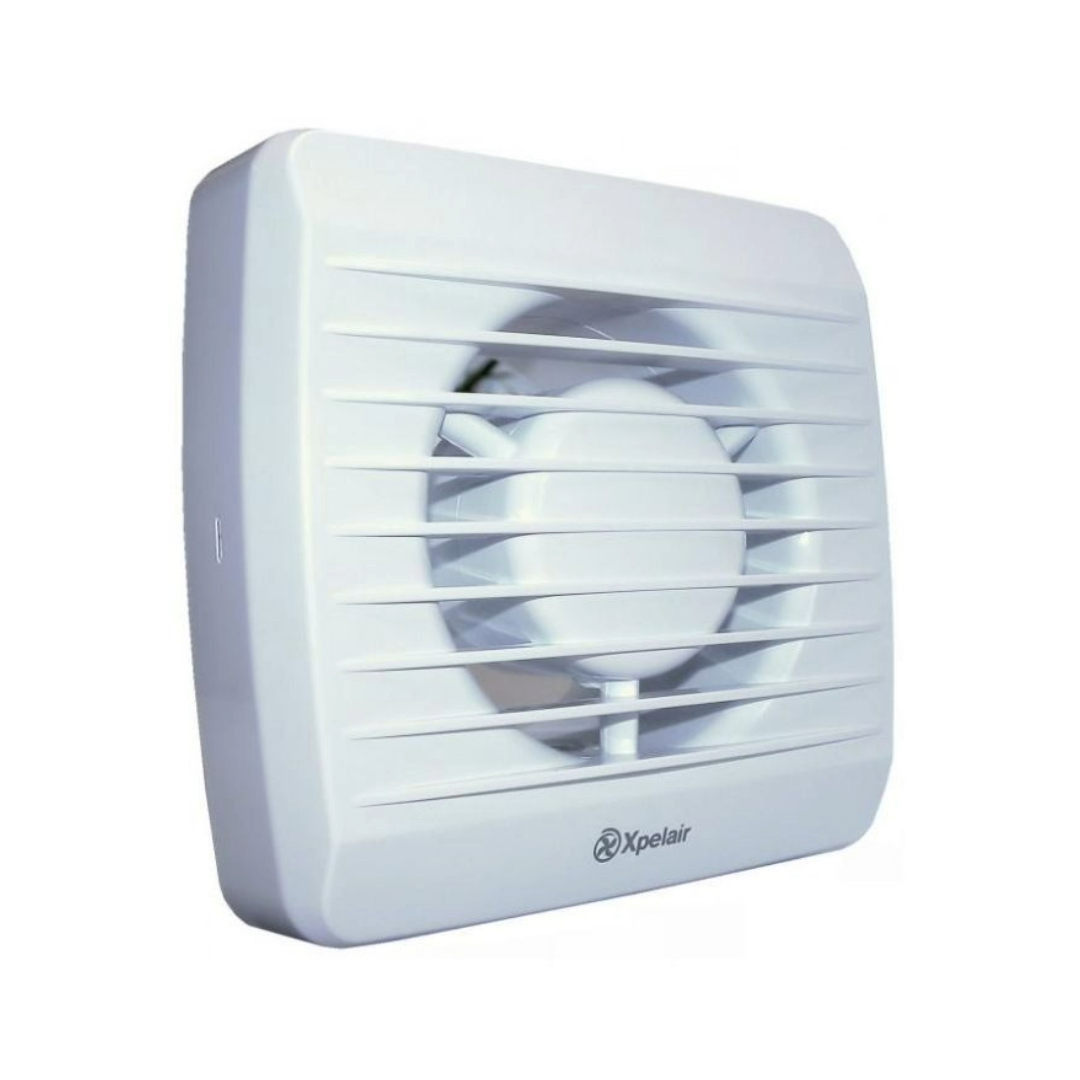

The Xpelair LoVolt LV100T is a compact and efficient 4"/100mm axial extract fan designed for safe and effective ventilation in bathrooms and shower rooms. This single-speed fan operates on a 12V Safety Extra Low Voltage (SELV) system, ensuring maximum safety even when installed directly in or over splash zones. The LV100T comes with a transformer that allows for secure installation, making it an ideal choice for areas prone to moisture. Its sleek white finish and universal mounting kit, which includes options for wall, ceiling, and window installations, ensure it blends seamlessly into any bathroom decor.

Equipped with an adjustable timer, the Xpelair LV100T offers customizable operation to suit your needs. The timer can be set to run from 2 to 20 minutes after being triggered by an external switch, such as a light circuit. This feature ensures that your bathroom remains well-ventilated even after you leave, helping to prevent the buildup of moisture and mold. The fan's efficient performance, with an extraction rate of 23 liters per second, ensures that your bathroom stays fresh and dry.

The Xpelair LV100T is not only functional but also easy to install. It comes with a comprehensive fitting kit that includes a telescopic wall tube, gaskets, an outer grille, and a skirt molding for window installations. This makes it versatile and suitable for various installation scenarios, whether in walls, ceilings, or single-glazed windows up to 6mm thick. With its reliable performance and safety features, the Xpelair LV100T is an excellent choice for maintaining a comfortable and healthy bathroom environment.

Downloads

Download xpelair-dx100-lv100-data-sheet

Specification

Airflow	85 m3/h
Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Collection Name	LoVolt
Duct Size Diameter	99 mm
Extraction Rate Litres Second	24 L/s
Extractor Type	Axial
Fan Size Diameter	4 in
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IPX5
Lip Depth	43 mm
Minimum Voltage	220 V
Mounting	Ceiling, Panel, Wall, Window
MPN	90847AW
Number Of Speeds	1
Old GTIN	5013562908450
Timer	Yes
Voltage	240 V
Height	155 mm
Weight	2.2 kg
Width	165 mm
