Product Overview

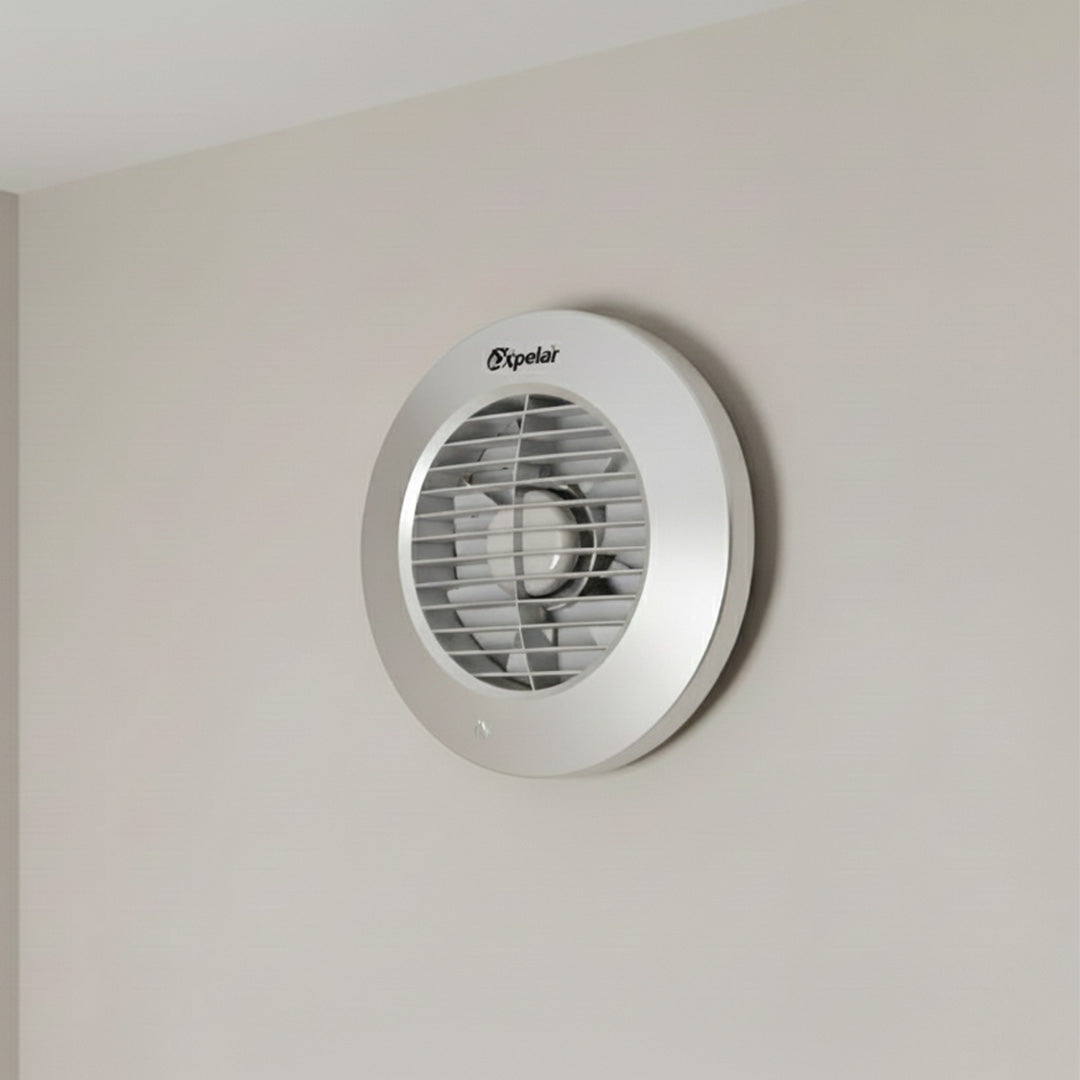

The Xpelair 93071AW DX150R is a high-performance, 150mm (6-inch) round extractor fan designed to provide efficient and quiet ventilation for various settings, including kitchens, utility rooms, larger bathrooms, and individual offices. Part of the Simply Silent range, this fan features advanced Ghost Air Movement Technology, which ensures near-silent operation by minimizing both motor and airflow noise. Its sleek, round design with a conventional grille-style fascia makes it a stylish and practical addition to any room, blending seamlessly with modern decor.

This extractor fan offers two selectable speeds, 63 l/s and 72 l/s, allowing you to customize the ventilation performance to suit your specific needs. The fan is designed for versatile installation options, including wall, ceiling, panel, and window fitting, making it adaptable to various environments. The Xpelair DX150R is also compliant with Building Regulations Part F and L, ensuring it meets the highest standards for energy efficiency and performance. The inclusion of a knock-out section for side entry wiring further enhances its ease of installation.

Built with durability and user convenience in mind, the Xpelair DX150R is constructed from high-quality materials that ensure long-lasting performance. Its IPX4 rating makes it suitable for use in wet areas, providing reliable operation even in humid conditions. Whether you're upgrading your current ventilation system or installing a new one, the Xpelair DX150R 150mm Round Extractor Fan is the perfect choice for maintaining a fresh and comfortable indoor environment.

Downloads

Download xpelair-dx150-spec-sheet

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Office, Toilet
Backdraft Shutter	Yes
Collection Name	Simply Silent
Duct Size Diameter	148 mm
Extraction Rate Litres Second	67 L/s
Extractor Type	Axial
Fan Size Diameter	6 in
Finish Or Colour	White
IP Rating	IPX4
Lip Depth	39 mm
Maximum Airflow	241 m³/h
Minimum Airflow	214 m³/h
Minimum Voltage	220 V
Minimum Wattage	15 W
Mounting	Ceiling
MPN	93071AW
Noise Level Maximum	42 dB
Noise Level Minimum	39 dB
Number Of Speeds	2
Old GTIN	5013562930710
Voltage	240 V
Wattage	22.6 W
Depth	130 mm
Diameter	229 mm
