Product Overview

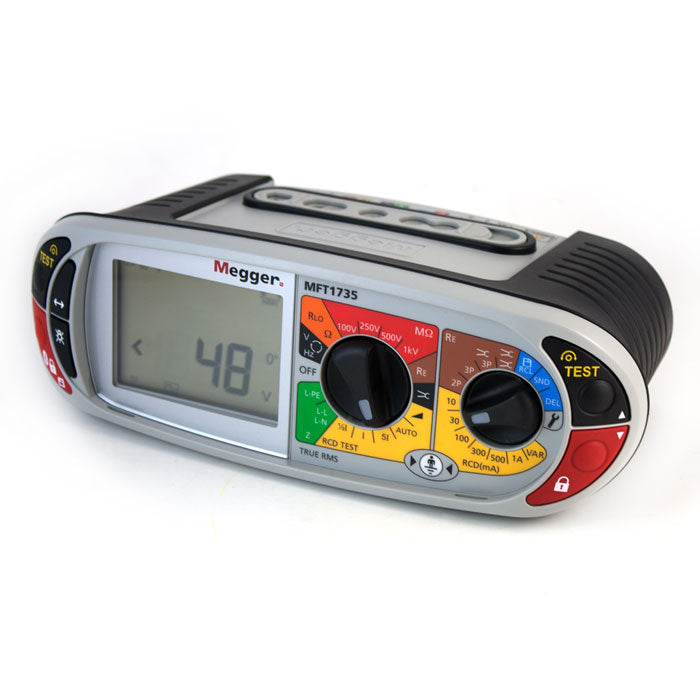

Megger MFT1735 Multi-function Tester - 1003-319

The Megger MFT1735 device is designed for testing low voltage electrical installations to BS 7671. It provides all the tests required to complete necessary electrical certification for industrial, commercal and domestic fixed wiring installations. The notion of this tester is for electricians to have a single tool that performs a range of tests, increasign efficiency and reducing the need for multiple test devices. The Megger brand are reputable and their prodicyst are known for providing accurate test results that professionals can trust, ensuring safe installations and safety requirements are met, as per relevant standards and regulations.

Product Overview:

System voltage and frequency measurement (TRMS)
Insulation test at 100 V, 250 V, 500 V and 1000 V. Including input protection against live circuits up to 600V, even when insulation test is locked-on
Continuity resistance at 200 mA or 15 mA
Automatic – no need to press TEST so leaving both hands free to hold probes
Resistance range up to 100 kΩ
With fast continuity buzzer and selectable thresholds
 Non-trip loop test
Earth loop test
2 and 3 wire non-trip range
2 wire Hi current including phase to phase
Prospective fault current measurement
Up to 20 kA

RCD testing including:
Type AC, A, S, B and programmable RCDs
1/2 x I, 1 x I and 5 x I
3-phase RCDs
Fast ramp test
Auto-test routine
Fault (Touch) voltage display

Earth testing:

2-pole, 3-pole, ART
Stakeless techniques

Downloads

Download MFT1735-Datasheet

Specification
