Product Overview

This version is the grey version.

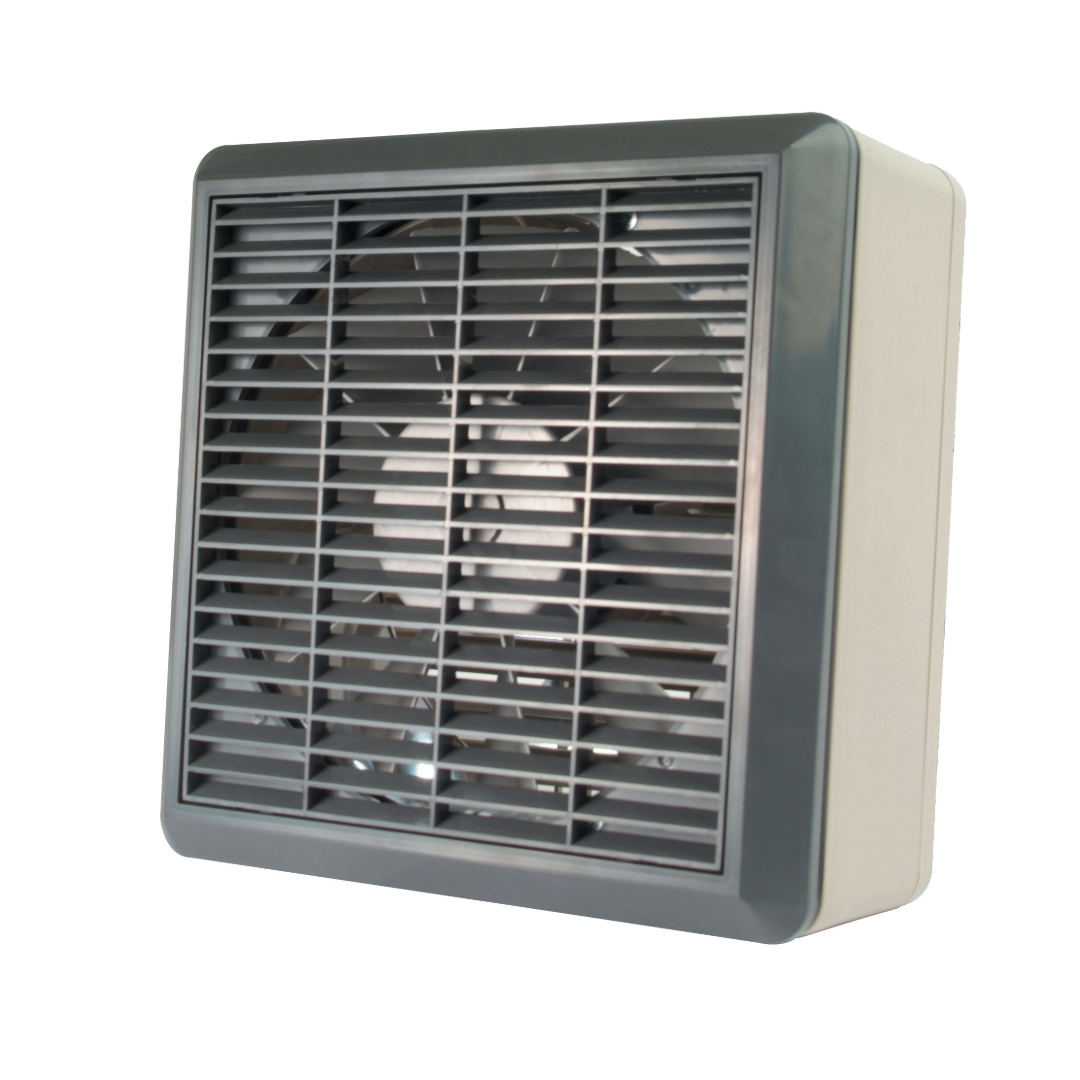

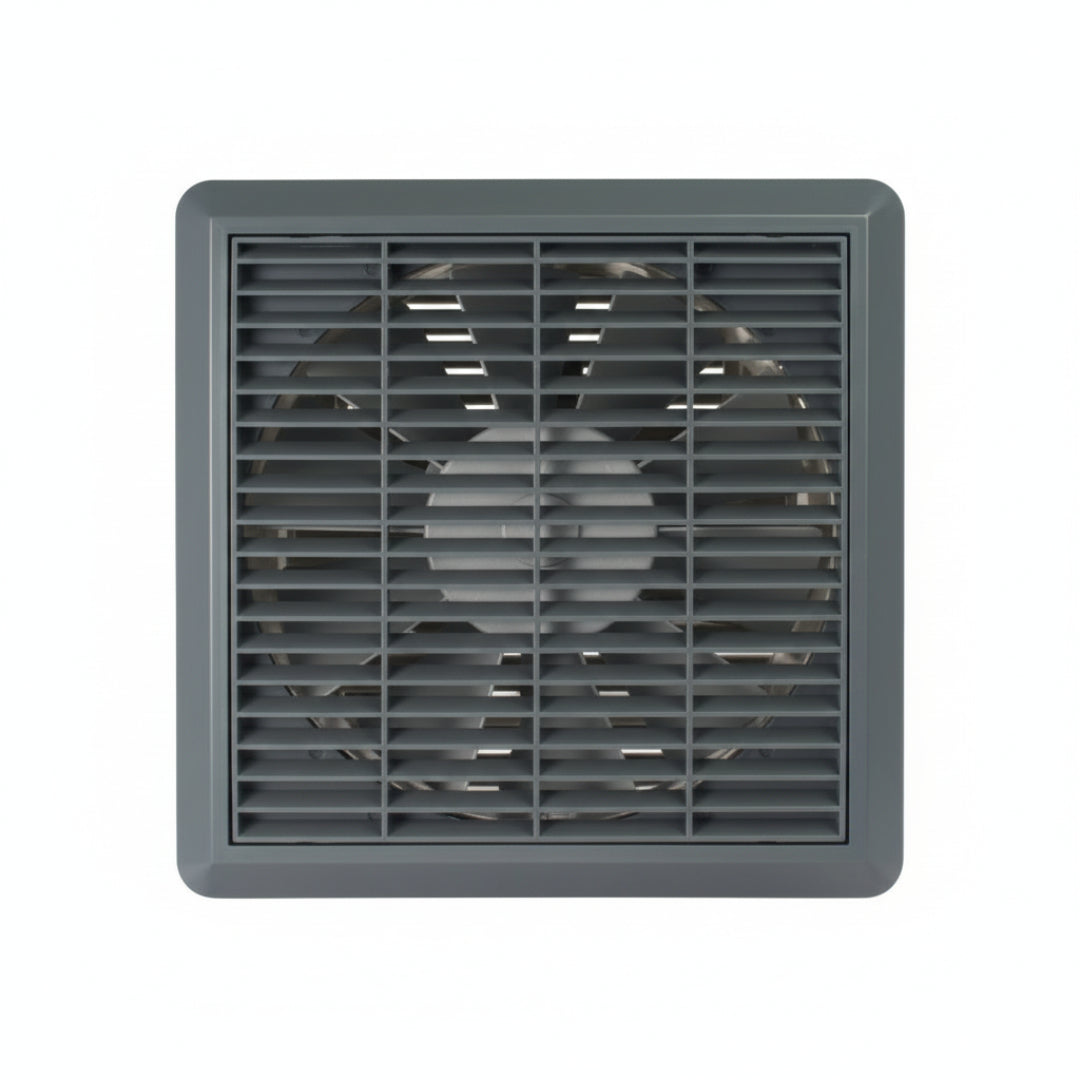

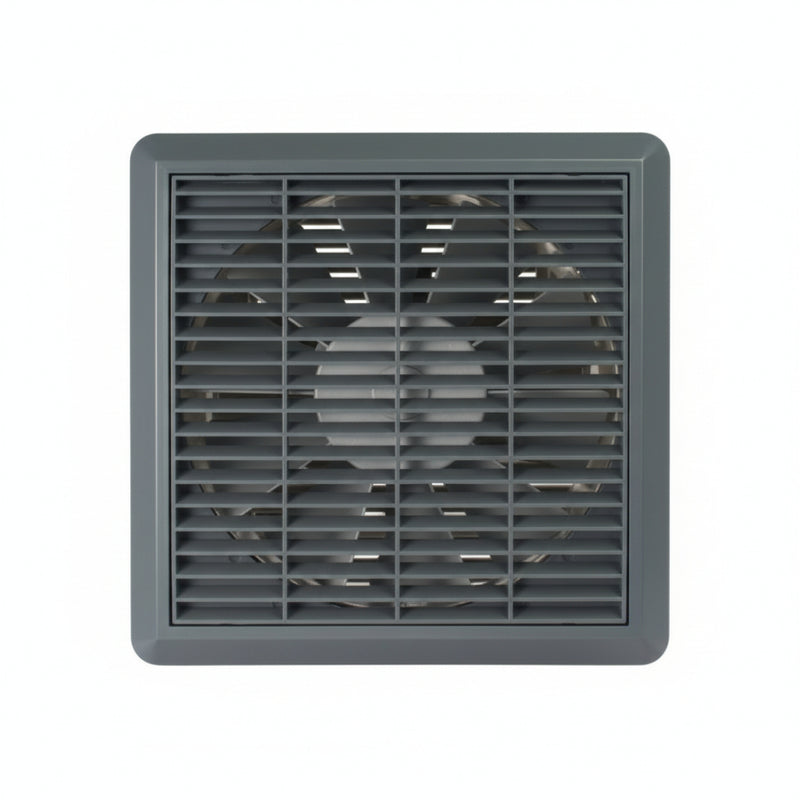

The stylish Manrose commercial series internal louvre incorporates the internal shutters which are built into the grille so the internal profile of the fan is less obtrusive. These elegant and stylish units will blend into the background and cover a wide variety of commercial applications such as pubs, restaurants, hotels, offices, shops and factories. They are also suitable for use in public sector areas such as service stations, hospitals, schools and railway stations and are designed for heavy usage. Another feature of the range is that on the grey models, the external grille is moulded in a dark grey so it will not be too obtrusive on the window line, and blend into the background.

The grey commercial series does not require as much cleaning as their white counterparts. These fans are double insulated and do not require an earth. All wiring must comply with the current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan should NOT be accessible to a person using either the shower or bath and mounted a minimum of 1.8m from the floor.

• 278m³/hr, 77 litres per second
• Single phase consuming 20W on 150mm Series
• Maximum pressure: 50 p.a.
• Mounting: Wall
• Hole Size: 6"
• Number of Speeds: 1
• Fan speed: 2400 r.p.m.
• Sound volume: 40.0 dB(A)
• Maximum operating temperature: 40°C
• Window fitting through 184mm hole
• Available with automatic shutters or pullcord operated shutters.
• Tested to comply with the Building Regulations on Ventilation (F1)
• Dimensions: Height: 205mm x Width: 205mm x Depth: 128mm

Criteria

• Application: Window Fan
• Wattage: 20
• Voltage: 220-240V - AC. 50Hz
• Guarantee: 3 Years
• Width: 205
• Height: 205
• Colour: Grey
• Manufacturer Code: COMG150A
