Product Overview

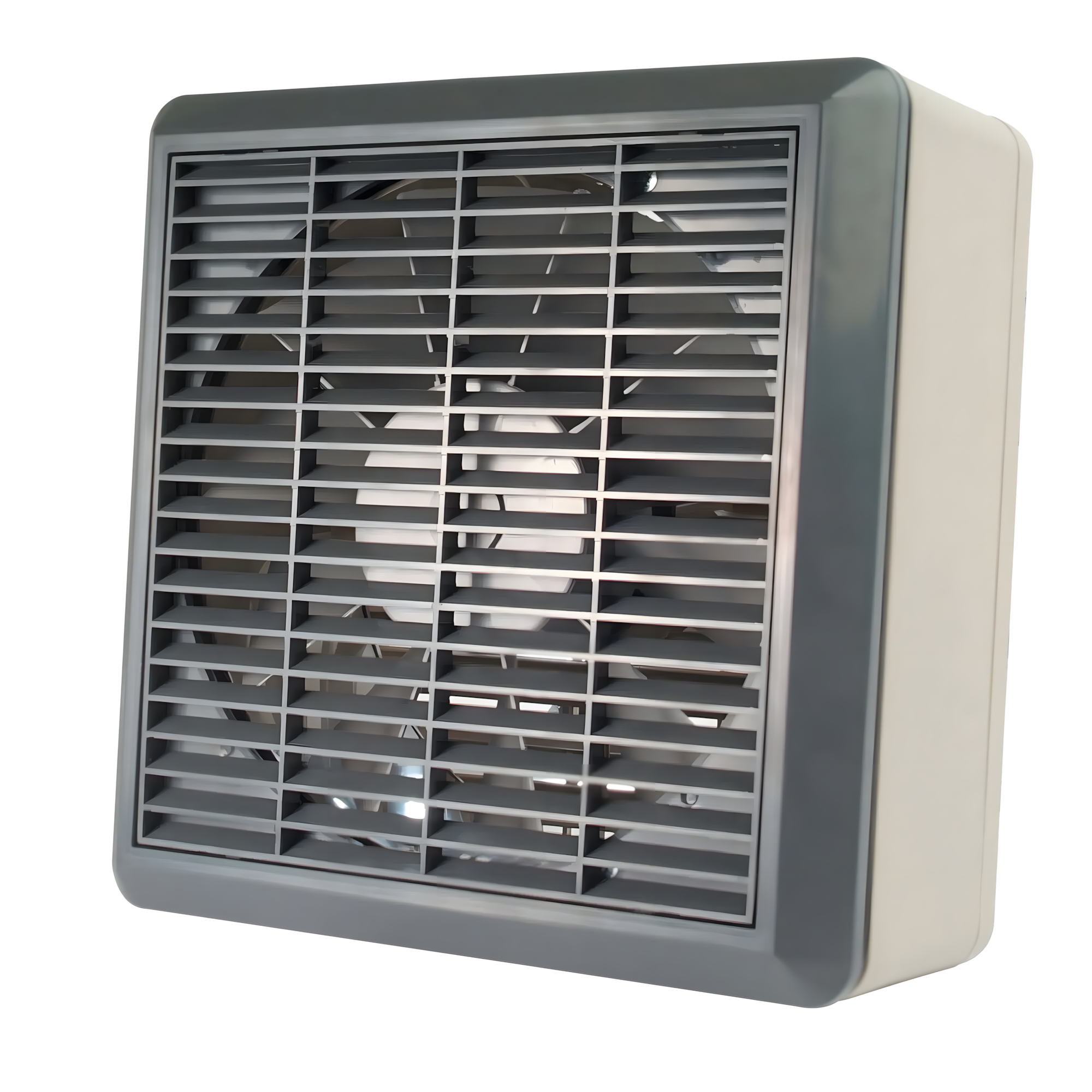

The Manrose Commercial Series Internal Louvre is designed with elegance and functionality in mind. Featuring internal shutters built into the grille, these fans present a sleek profile that seamlessly blends into various commercial environments. Ideal for pubs, restaurants, hotels, offices, shops, and factories, they are also perfect for public sector areas such as service stations, hospitals, schools, and railway stations. These units are built for heavy usage, ensuring durability and reliability in demanding settings.

Available in soft neutral grey or traditional white, the Manrose Commercial Series fans complement most decors. The grey models feature an external grille moulded in dark grey, minimizing visual impact on window lines and reducing the need for frequent cleaning compared to their white counterparts. These fans are double-insulated and do not require an earth connection, adhering to current IEE regulations. Installation requires a double pole isolating switch with a contact separation of at least 3mm in all poles and a 3 amp fuse. For safety, the fan should be mounted at least 1.8 meters from the floor and should not be accessible to individuals using a shower or bath.

With a performance of 1100m³/hr (306 litres per second) and a single-phase consumption of 68W on the 300mm series, these fans deliver powerful airflow. They operate at a maximum pressure of 60 p.a., with a fan speed of 1300 r.p.m. and a sound volume of 60.0 dB(A). Suitable for wall mounting with a 12" hole size, they can also be fitted through a 320mm window hole. The fans are available with either automatic shutters or pullcord-operated shutters and are tested to comply with Building Regulations on Ventilation (F1). Dimensions are 362mm in height, 362mm in width, and 171mm in depth, making them a versatile and efficient choice for commercial ventilation needs.

Specification
