Product Overview

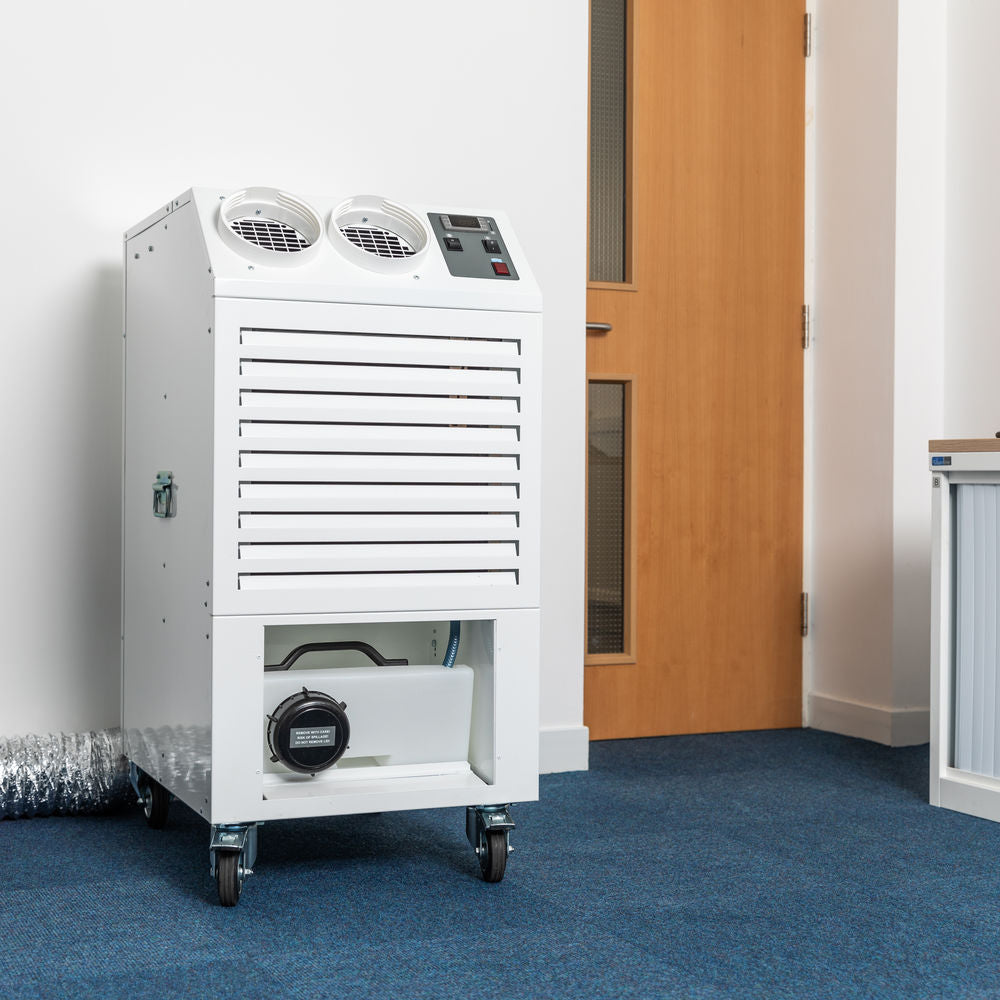

This strong monoblock unit utilises Broughton’s unique airflow delivery system to power the exhaust air along up to a massive 10m of narrow 150mm diameter ducting.
Not only does this make the ducting much more manageable and easy to store, it also allows the unit to be sited up to 10m away from the warm air exhaust point. Also using the same airflow technology on the cold side, a single unit to cool two areas at the same time with the option to extend the ducting.

Included are the dual outlets as standard to give the unit directional airflow - this is because they can be positioned to reach the maximum cooling effect.

Further & upgraded, this unit has a digital thermostat that allows the user to set the desired temperature to keep the area at. Ideal for use either as a spot cooler or to help regulate temperatures wherever the need arises.

Not only this, but the MCe range also uses R454C which is a low GWP (Global Warming Potential) refrigerant that’s 95% less harmful to the environment than some traditional refrigerants. It's also A2L rated neither does it have the flammability issues associated with other low GWP refrigerants such as R290 (Propane) either.

Specification:

• Nominal duty 6.5kW
• Nominal Running Current 8A
• Digital thermostatic control
• Exhaust up to 10m
• Cool two areas from one unit up to 1.25m per outlet
• Lockable castors
• Narrow 150mm duct
• High efficiency EC fan technology
• Evaporator Airflow (max) 1,198m³
• Condenser Airflow (max) 1,200m³
• Supply 13A 230v
• Typical Cooled Area 150m³
• Cooling Ducting 2x150mm
• Exhaust Ducting 150mm
• Weight 92kg
• Dimensions 1086x526x774mm (Including spigot)
• Operating range 21°c-35°c
• IP Rating IP2X
• Noise 65dB
