Product Overview

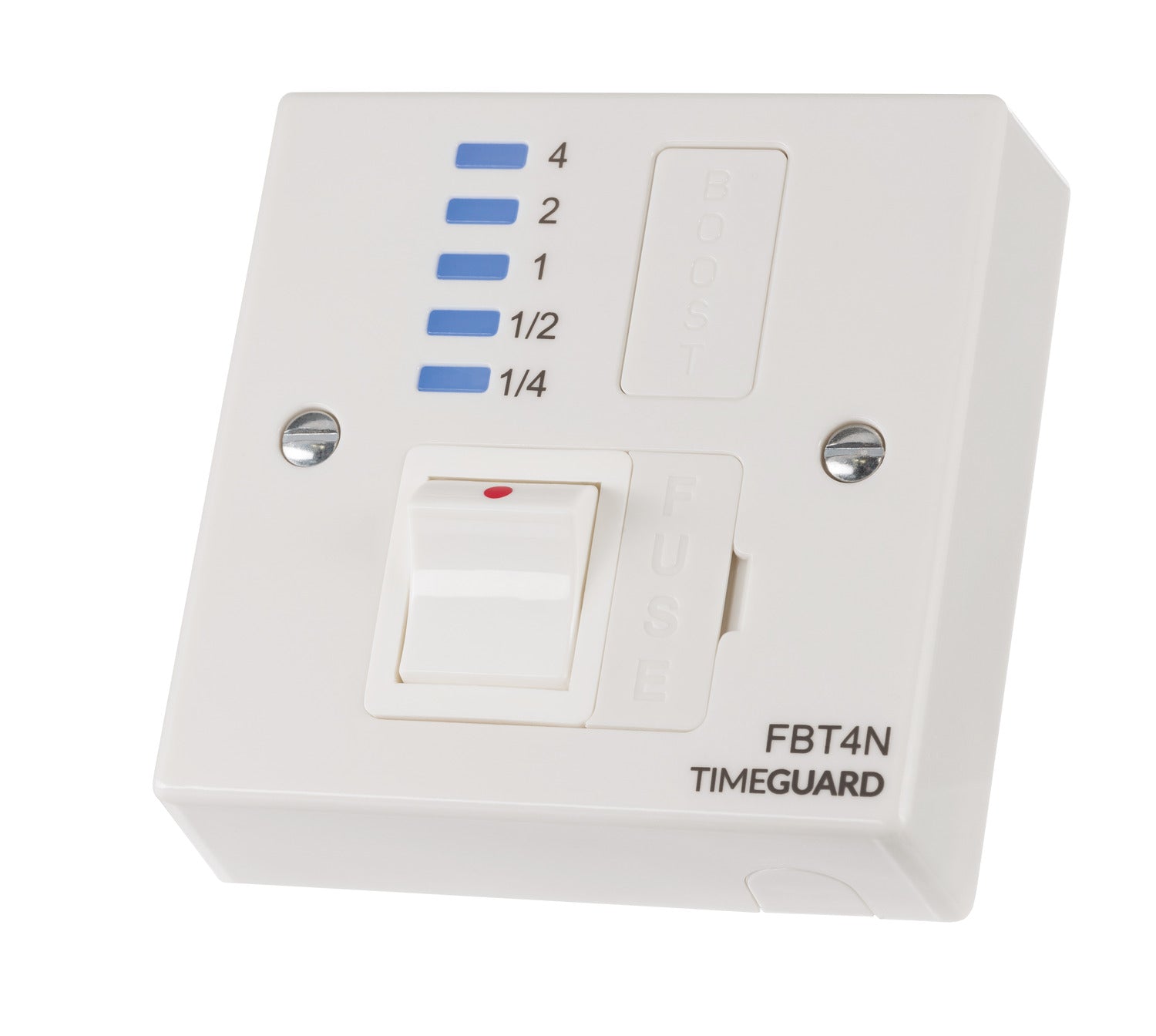

Timeguard Electronic 4 Hour Boost Timer and Fused Spur - FBT4N BoostMaster Fused Spur Countdown Switches have been added to the range, offering timed output with BS1362 fuse switch protection. These switches feature automatic timed countdowns that default to a fail-safe OFF, easily set using simple push-button programming, with clear LED indicators for output status. They can be effortlessly installed by replacing existing single gang connection units or fixed appliance outlets. Key Features: Automatic Timer Countdown: You can select countdown times of 15 minutes, 30 minutes, 1 hour, 2 hours, or 4 hours. Easy Installation: It replaces existing single gang connection units or fixed appliance outlets. LED Output Status: Clear LED indicators show the timer status. Safety: Provides timed output protected by a BS1362 fuse switch. High Load Capacity: Supports up to 13A resistive loads (3kW), 1000W incandescent or halogen lighting, 500W fluorescent lighting, 200W LED lighting, and 100W compact fluorescent lighting. Versatile Applications: Ideal for controlling immersion heaters, room heaters, towel rails, and lighting. Fail-Safe OFF: Automatically defaults to an OFF position after the countdown period, ensuring safety. Energy-Efficient: Consumes less than 0.7W in standby mode. Compact Design: Dimensions are 85mm x 85mm x 42mm, with a protruding depth of 32mm, fitting neatly into standard wall boxes. Wide Operating Temperature Range: Functions effectively between 0°C and 40°C.

Specification

Applicable Area	Home
Domestic or Commercial	Domestic
Finish Or Colour	White
Gang	1
Material	Polycarbonate
MPN	FBT4N
Old GTIN	5012483015179
Operating Temperature Maximum	45°C
Depth	31mm
Height	85mm
Weight	0.16kg
Width	85mm
